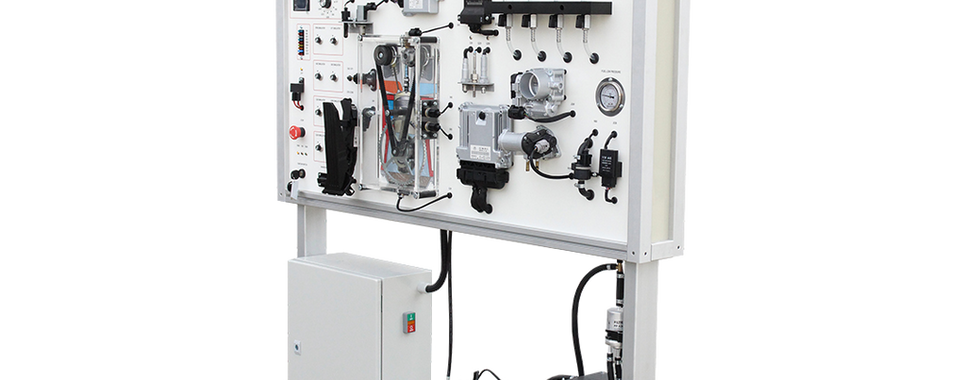

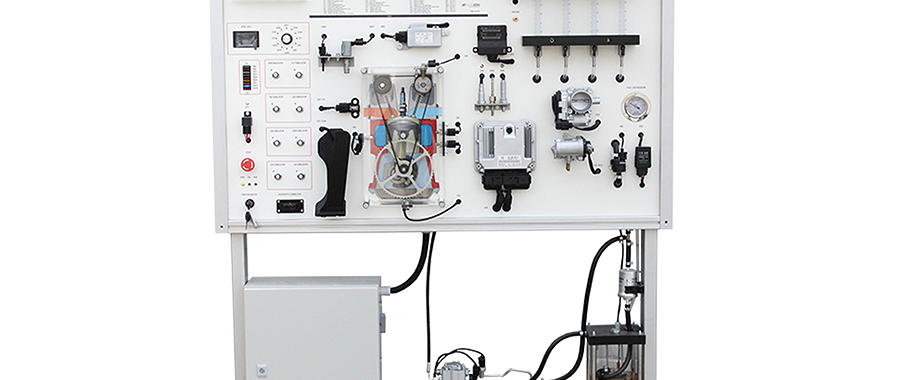

Train Smarter with the MSFSI02 Direct Petrol Injection System
Modern engines are getting more complex—and teaching them shouldn’t be guesswork. The MSFSI02 Engine Management Training Stand from AutoEDU gives instructors a reliable, hands-on way to teach students how today’s fuel, ignition, and exhaust systems actually work.
This isn’t a simplified demo board. The MSFSI02 uses real OEM components from Audi/VW’s Bosch Motronic (FSI) system to replicate what students will see in the field—without the hazards of working on a live vehicle.
Key Features That Set the MSFSI02 by AutoEDU Apart:
Full System Visibility: Expose students to the full engine management system—fuel supply, ignition, exhaust—and let them track each signal in real time.
Built-In Diagnostics: The OBD II 16-pin port enables scan tool connections for ECU data, live readings, fault codes, and more.
Real-Time Measurement: Over 20 electrical parameters are accessible via banana plug connectors for multimeters, oscilloscopes, or on-panel TFT displays.
Manual Fault Simulation: Disconnect circuit jumpers to simulate faults and build troubleshooting confidence—safely and repeatedly.
Adjustable Conditions: Change crankshaft speed, temperature, and sensor readings to see how the system adapts, reinforcing core diagnostic logic.
How It Benefits Your Students:
Gain real-world diagnostic experience using industry-standard scan tools
See how components interact, not just where they are
Build critical thinking through guided fault simulations
Reset and re-run lessons quickly with minimal setup
Technical Specifications
Before bringing any training aid into your classroom or lab, it’s important to know whether it fits your space, power setup, and mobility needs. Here’s a quick look at the core specifications for the MSFSI02 — helping you plan with confidence.
Dimensions: 1820 x 1360 x 500 mm (71.65" x 53.54" x 19.69")
Weight: Approx. 105 kg (230 lbs)
Power Supply: ~230V / 110V (U.S. version available)
Product Number: MSFSI02
AutoEDU’s approach is built on realism, safety, and repeatability—so you’re not just telling students how an engine works. You’re showing them.
Want to learn more or get pricing? Contact EdTech Global to request a quote or speak with a rep about how this unit fits into your training program.
